ML-Series |
ES-Series |
| MEDIA |
| Material |

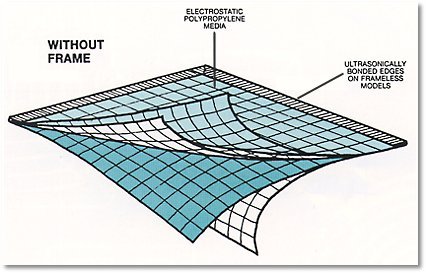

Polypropylene fiber honeycomb weave |
Polypropylene fiber pleated weave |
| Color |
Black |
Black |
| Thickness |
.03“ (.75mm) |
.188” (4.77 mm) |
| Maximum Operating Temperature |
200°F (93.3°C) |
200°F (93.3°C) |
| Resistance to organic solvents |
Excellent |
Excellent |
| Resistance to organic acids |
Excellent |
Excellent |
| Resistance to alkalies |
Excellent |
Excellent |
| Resistance to sunlight |
Excellent |
Excellent |
| PERFORMANCE |
| Average Arrestance |
Model ML-2 (2 ply) - 55%
Model ML-3 (3 ply) - 62%
Model ML-4 (4 ply) - 66%
Model ML-5 (5 ply) - 71% |
58% |
| Initial Resistance |
2 ply - .05” w.g. @ 360 fpm
3 ply - .06” w.g. @ 360 fpm
4 ply - .10” w.g. @ 360 fpm
5 ply - .12” w.g. @ 360 fpm |
.02” w.g. @ 360 fpm |

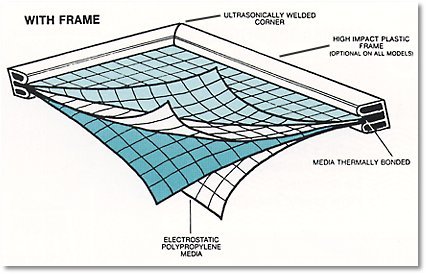

| FRAME |
| Material |
High impact ABS |
High impact ABS |
| Color |
Black |
Black |
| Thickness |
1/4” - actual size .25“ ( 6.4 mm)
1/2” - actual size .44” (11.2 mm)
1” - actual size .88” (22.4 mm)
2”-actual size 1.75” (44.5 mm) |
1/4” - actual size .25“ ( 6.4 mm)
1/2” - actual size .44” (11.2 mm)
1” - actual size .88” (22.4 mm)
2”-actual size 1.75” (44.5 mm) |
| Tolerance |
Length: .03” (.76 mm)
Width: .03” (.76 mm)
Thickness: .02” (.51 mm) |
Length: .03” (.76 mm)
Width: .03” (.76 mm)
Thickness: .02” (.51 mm) |
